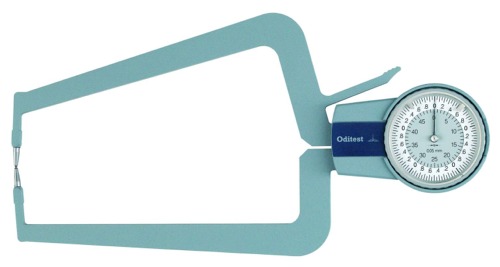

The picture may differ slightly from the original.

For measuring of external grooves, bars and flats etc.
Dust and drop - water resistant
With tungsten carbide measuring contact points
With moveable contact arm, with tolerance fingers
Zero - setting at any position by the rotating outer ring

Technical Data
Measuring Range: 0 - 50 mm
Reading: 0,05 mm
Deviation measuring range: +/- 0,05 mm Repeatability: 0,025 mm
Measuring Depth: 170 mm
Diameter Contact Measurement: 2 mm
Lenght Contact Measurement (moveable): 32 mm
Lenght Contact Measurement (immobilize): 32 mm
min. Measuring power: 1,2 N
max. Measuring power: 1,8 N

Price without Tax: 375,00 EUR
Price incl. Tax: 446,25 EUR
