The picture may differ slightly from the original.

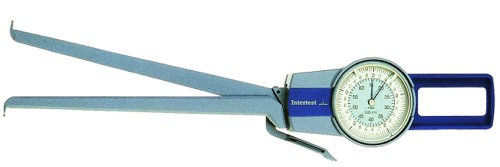

For measuring of internal grooves, bore etc.
- with tungsten carbide measuring contact points
- with rack gear
- with movable contact arm
- with tolerance fingers
- delivery with instruction manual
subdued drive with steel wire transfer for greater accuracy

Technical Data:
Measuring Range: 70 mm - 120 mm
Reading: 0,05 mm
Max. Error: +/- 0,05 mm
Repeatability: 0,025 mm
Measuring depth: 175 mm
Groove depth: 8,0 mm
Groove width: 3,3 mm
Measuring contact: cutting 2,0 mm
Measuring contact thickness: 2,5 mm / 5,0 mm
Measuring contact lenght (movable): 10,5 mm
Measuring contact lenght (immobilize) 40,5 mm
Measuring Power: 1,2 N - 2,0 N

Price without Tax: 432,00 EUR
Price incl. Tax: 514,08 EUR
