Surface Roughness Tester with swivel Probe
Article No.: » CV-R130   »Deutsche Seite«		 Material Groups
Current Measuring and testing equipment - Category:
Products | Test- and Inspection Tools | Roughness Tester

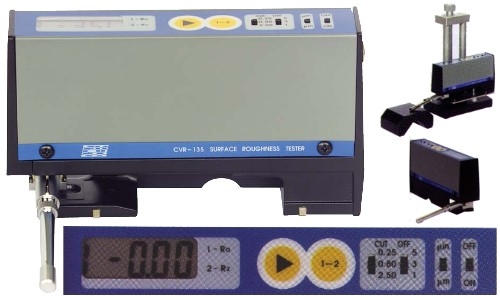

Surface Roughness Tester with swivel Probe CV-R130
The picture may differ slightly from the original.

Handheld surface roughness tester for external surfaces and grooves
with the swivel Probe it is possible to measure in 4 positions
Technical Data:

Roughness parameter: Ra, Rz
Reading: µm, µinch
Measuring ranges: Ra 0,03- 6,35µm, Rz 0,2- 25,3µm
Display resolution: 0,01 µm / 1 µinch
Cut-Off: 0,25 mm / 0,001'', 2RC filter, select 1 - 3 - 5 times
0,8 mm / 0,03'', 2RC filter, select 1 - 3 - 5 times
2,5 mm / 0,01'', 2RC filter, select 1 time
Accuracy: Meets ISO and DIN standards
Probe Type: Piezoelectric
Stylus tip radius: Diamond, 2 micron
Maximum stylus force: 15,0 mN / 1500 mgf
Power: 9,0V alkaline battery
Battery capacity:approx. 3000 measurements
Lieferung:
- Main unit CV-R130
- Protection cover
- Roughness test plate Ra
- Battery 9V standard
- Carrying case
- Manual
- certificate
Optional accessoiries:
Tracer for special applications, UKAS certified reference standards,
stand for stable testings

Price without Tax: 1165,00 EUR
Price incl. Tax: 1386,35 EUR

For order, please contact us.
ordering options:
Fax: 0049 351 4219127 | Email: info@praezisionstools.de
